Our team recently completed a major chimney venting project for a homeowner in Madison after a Level 2 inspection revealed serious problems with the existing oil furnace exhaust system. The homeowner contacted us for an urgent solution because the damaged venting system had already begun causing moisture and drafting issues inside the chimney structure.
Why This Chimney in Madison, CT Needed Immediate Attention

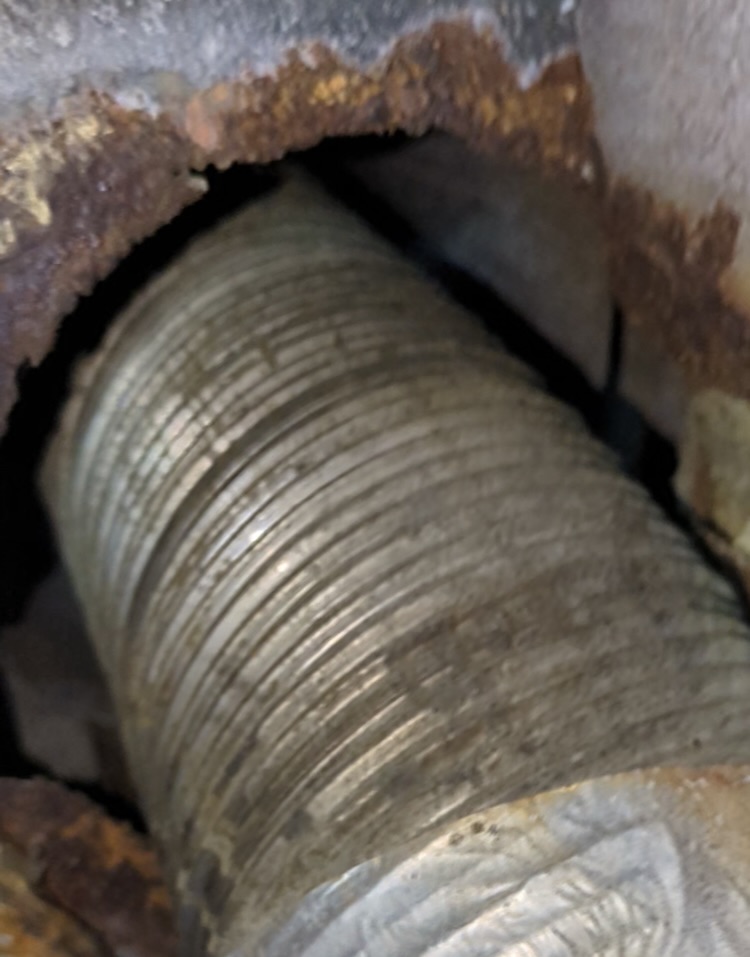

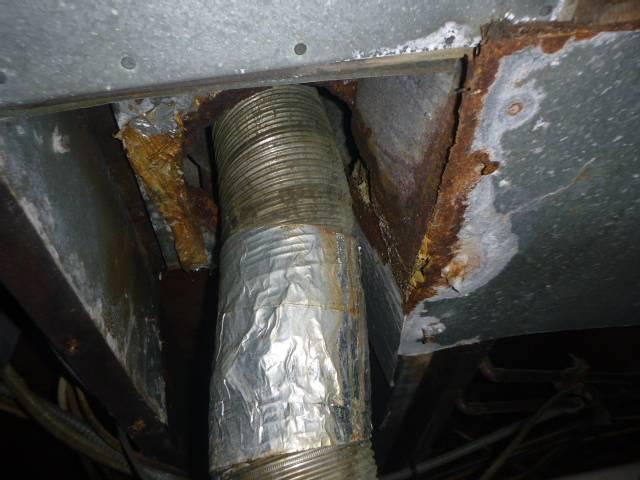

During our inspection, we discovered that a high-efficiency oil furnace was venting into a prefabricated chimney with an improper corrugated liner system. The liner had originally been designed for masonry chimneys only, not for prefabricated Class A chimney systems. As the furnace exhausted cooler gases, condensation formed inside the venting system. The acidic moisture mixed with oil soot and slowly damaged the chimney from the inside out.
The venting system showed signs of corrosion, poor drafting, and moisture damage. We documented the entire condition with video footage and explained the safety concerns to the homeowner before beginning the work.
Installing New Class A Chimney in Madison, CT for Safe Venting
To correct the issue, we first pulled the required town permit to ensure the installation met all local codes and manufacturer standards. After securing the permit, our crew carefully removed the damaged corrugated liner from the chimney system.

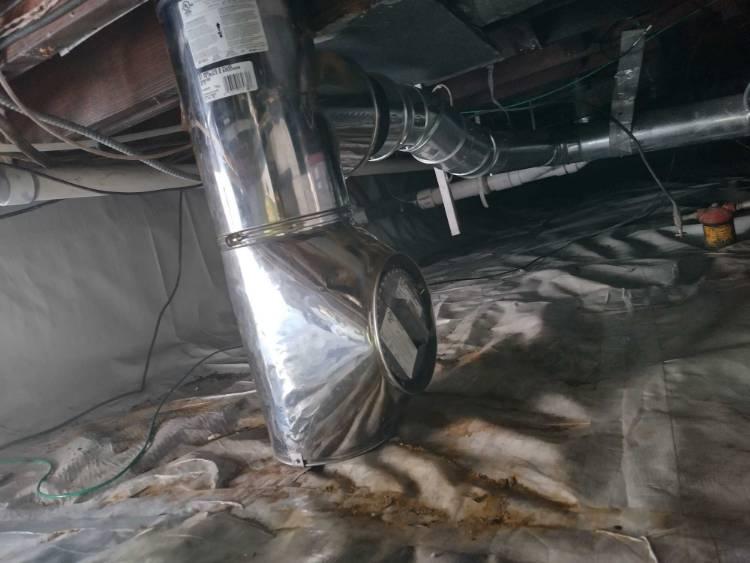

Next, we installed a new stainless steel Class A all-fuel chimney system sized specifically for the 5-inch oil furnace. The new system ran continuously from the furnace connection to the top of the chimney structure. This design improved draft performance and safely carried exhaust gases and acidic moisture out of the home.

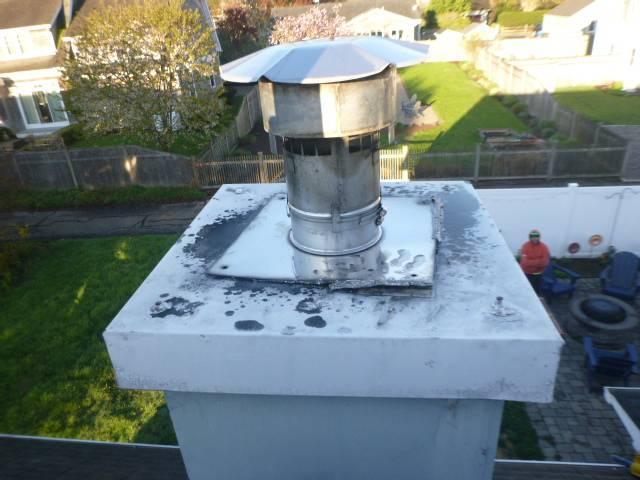

Because the chimney sat inside a wooden chase structure, we also installed a custom stainless steel chase pan, storm collar, and chimney cap. These components helped protect the structure from water penetration and long-term weather damage.
Class A Chimneys in Madison, CT Help Prevent Moisture Damage
Many homeowners do not realize that high-efficiency oil appliances create large amounts of condensation. When venting systems use the wrong materials, acidic moisture can quickly destroy the inside of the chimney. The original liner system was improperly installed for this type of prefabricated chimney, which caused premature deterioration and venting issues.
Our replacement system provided the homeowner with a safer and more durable venting solution designed specifically for oil furnace applications. Proper chimney liners and Class A chimneys also improve drafting performance, reduce corrosion, and help extend the life of the heating system.
Professional Chimney Liner in Madison, CT
This project showed why proper venting design matters for every oil furnace installation. Our team completed the chimney replacement safely, followed all code requirements, and ensured the new stainless steel chimney system properly vented the appliance.
If your home has a damaged or improperly installed venting system, a professional chimney inspection can help identify hidden safety issues before they become major structural problems.
